Workshop 1
>
Preparation Steps
> Create Internet Gateway
Create Internet Gateway

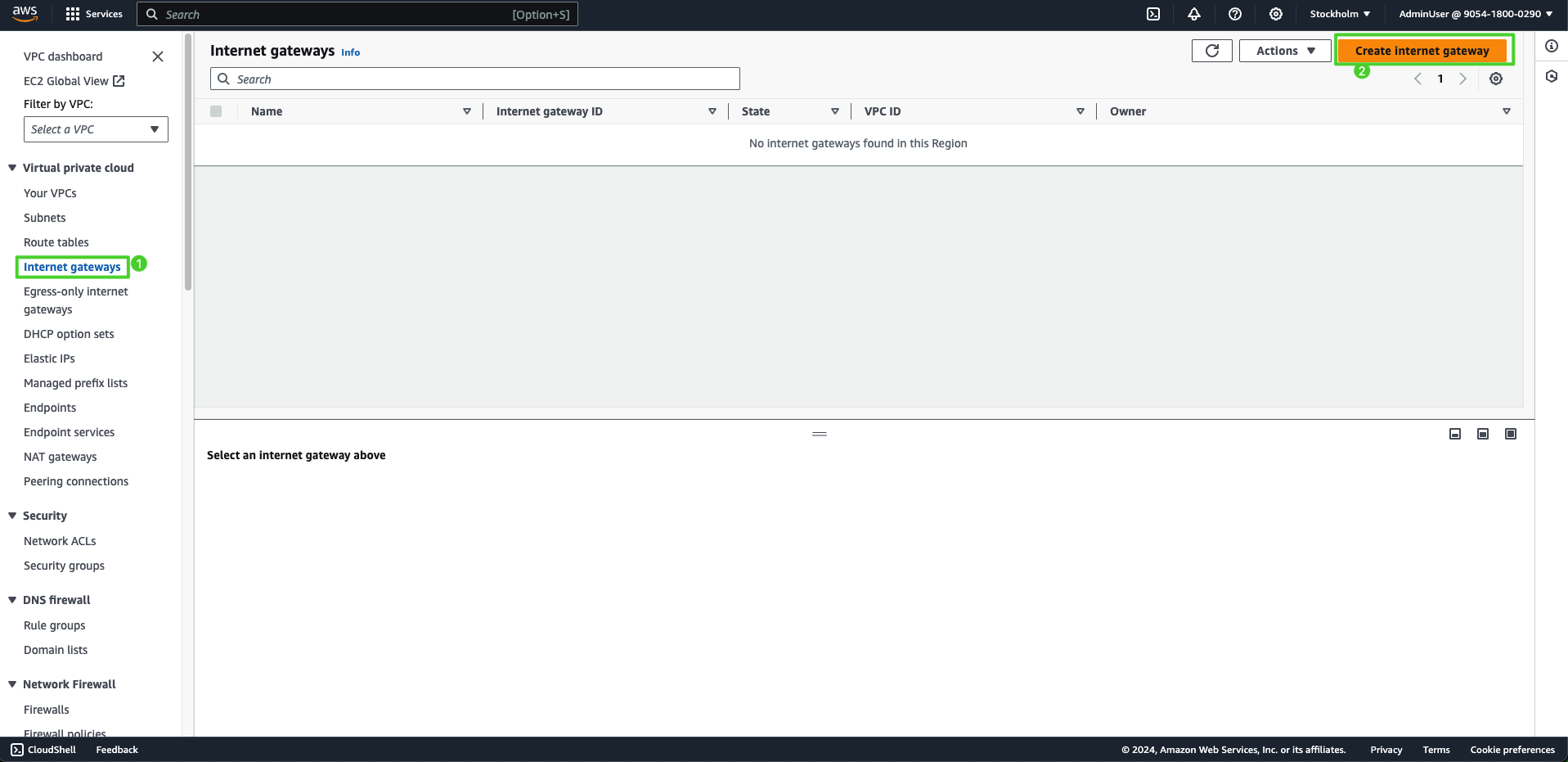

In the
VPC
interface
Select
Internet Gateways
Select
Create internet gateway

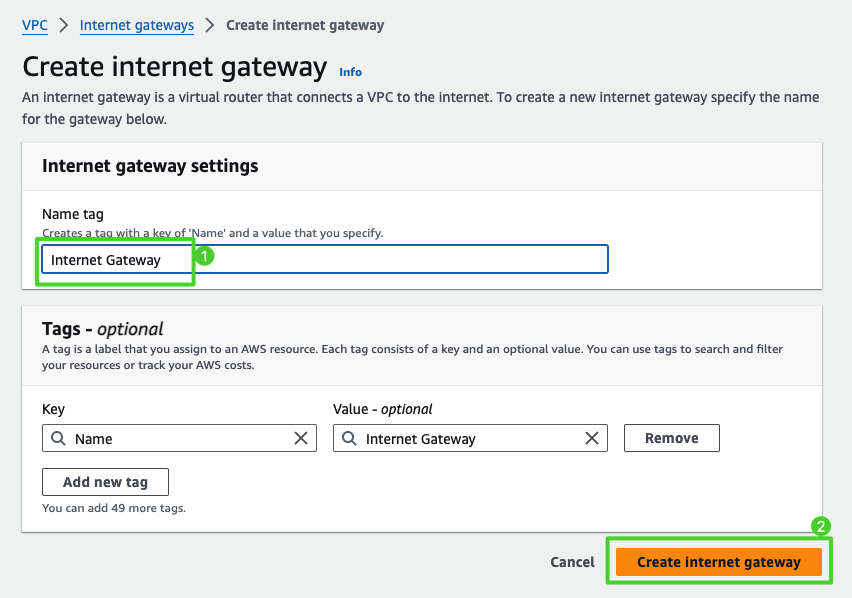

Configure
Name tag, as
Internet Gateway
Select
Create internet gateway
Finish creating
Internet Gateway
Implement
Attach VPC

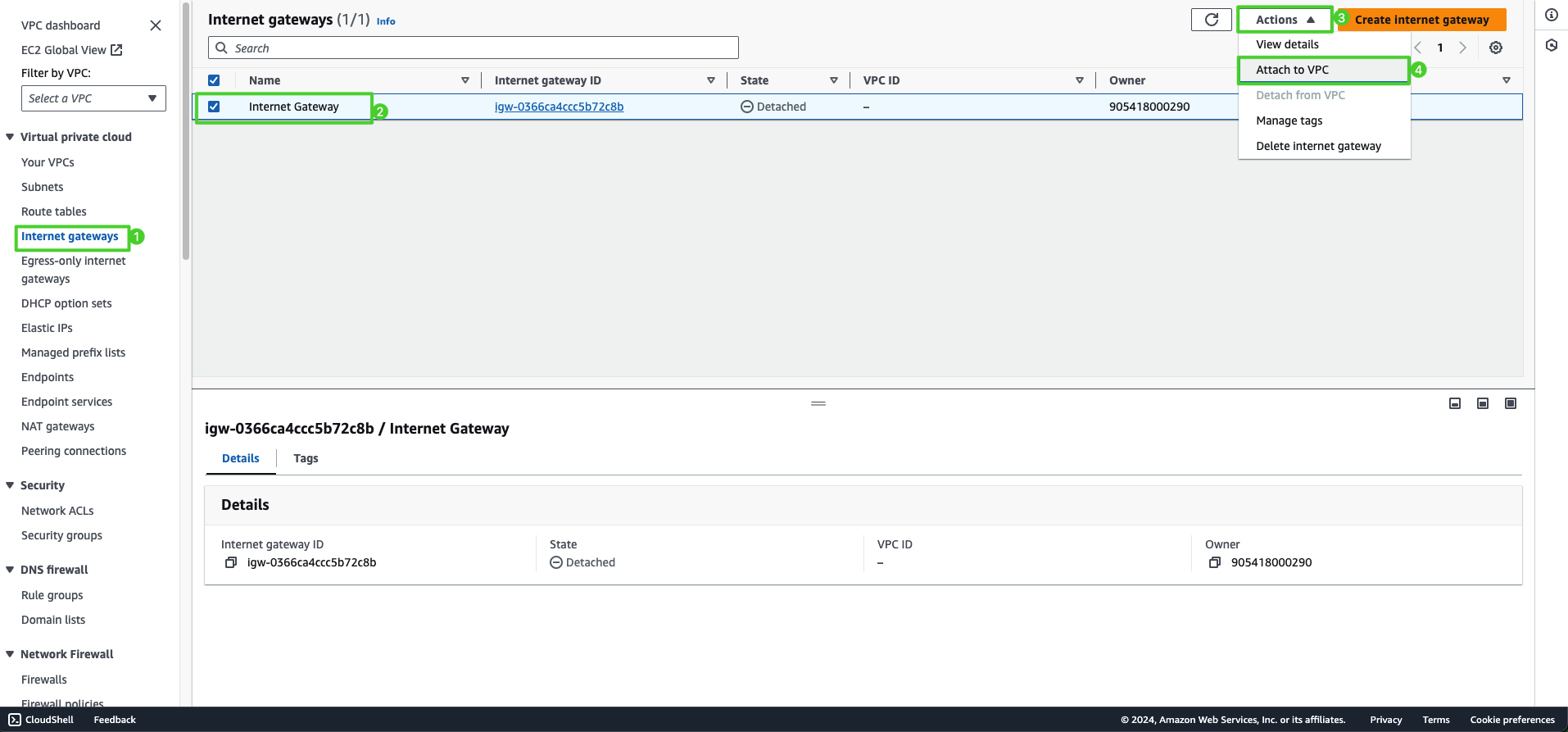

Select
Actions
Select
Attach to VPC
Select
Workshop1
, VPC ID sẽ được tự động điền.
Select
Attach intermet gateway

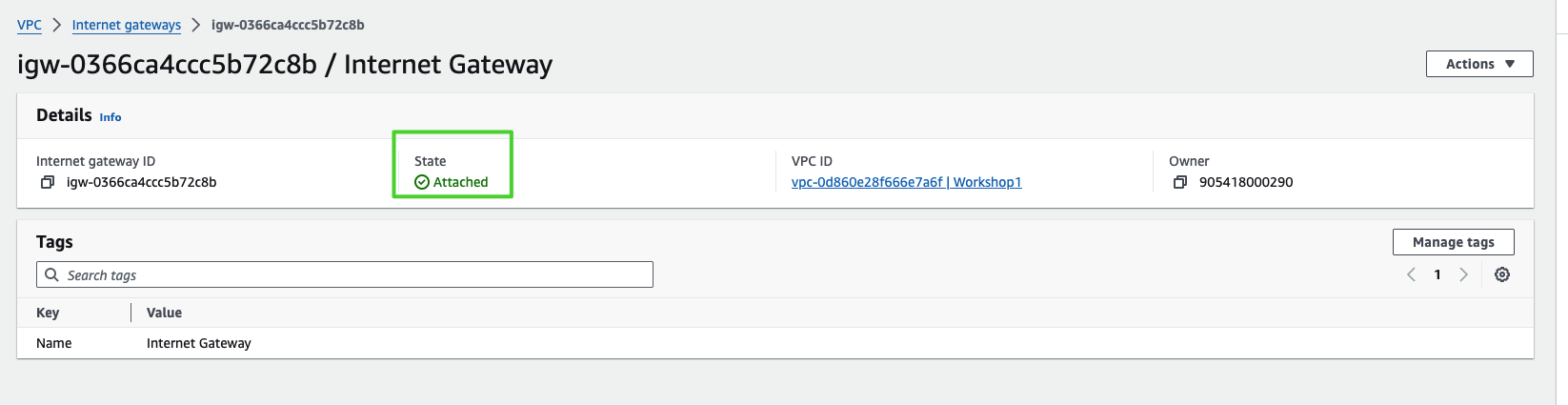

Once attached successfully, the State of the internet gateway will change to Attached
