Create EC2

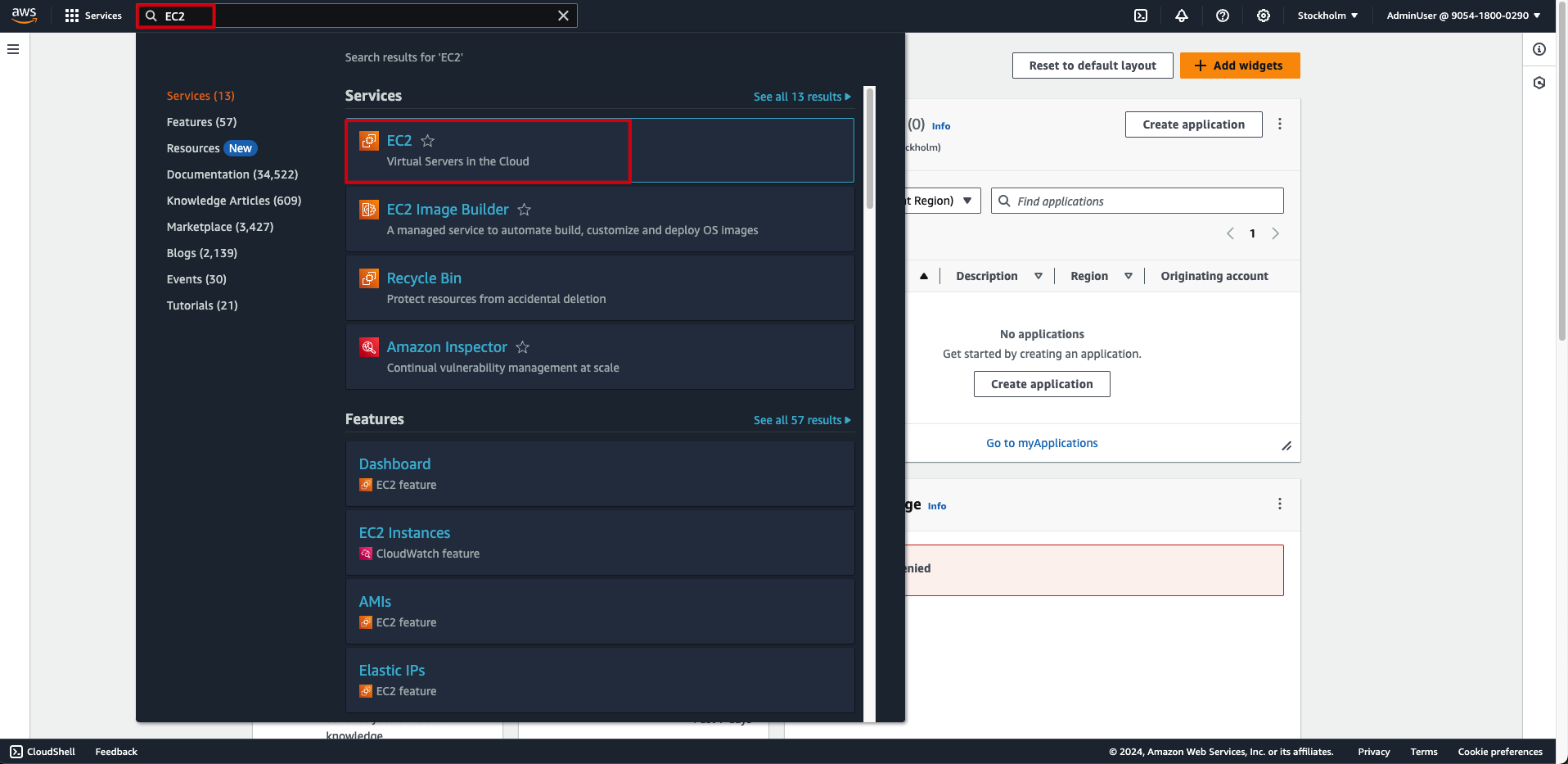

  1. Access to AWS Management Console

    • Find EC2
    • Choose EC2

EC2

  1. In the EC2 interface

    • Chọn Instances
    • Chọn Launch instances

EC2

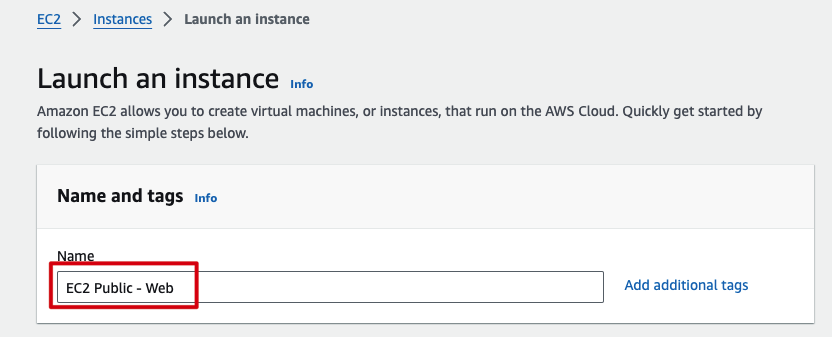

  1. Name and tags của instance, as EC2 Public - Web

EC2

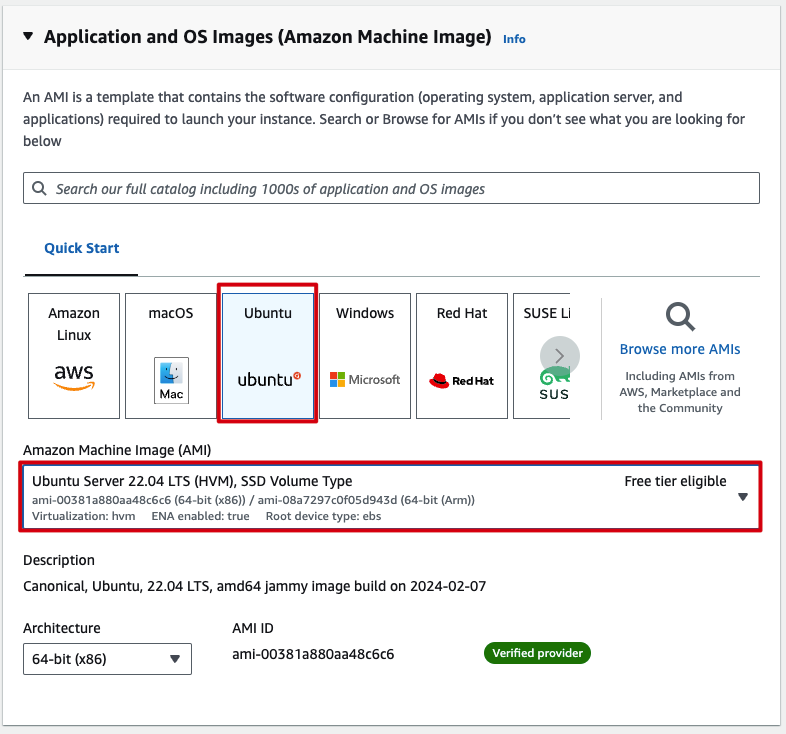

  1. ImpleSelect AMI

    • Select Quick Start
    • Select Ubuntu Server 22.04
    • Select AMI

EC2

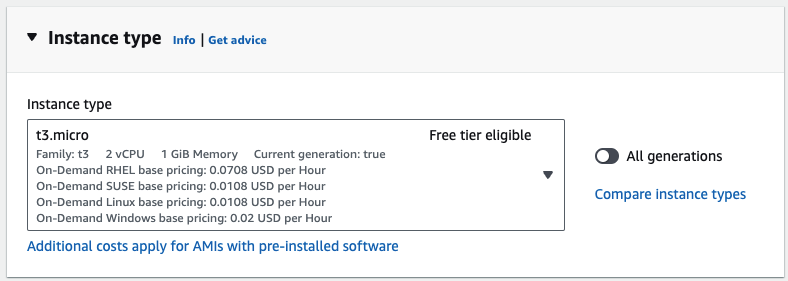

  1. Implement Instance type

EC2

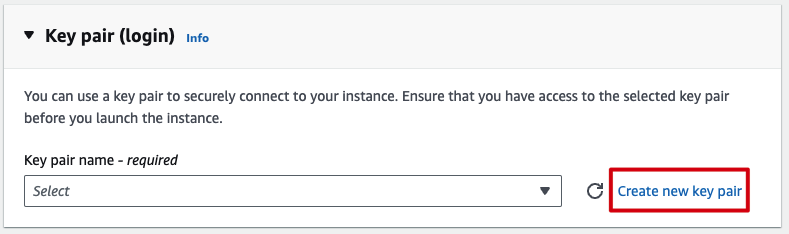

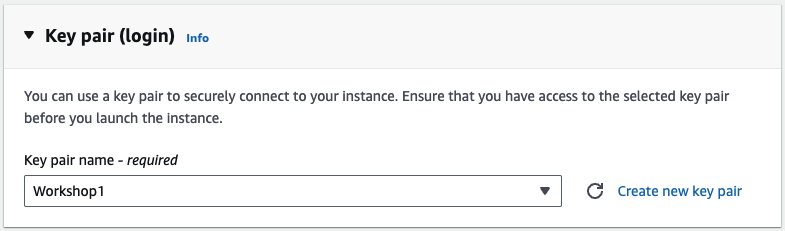

  1. Select Create new key pair

EC2

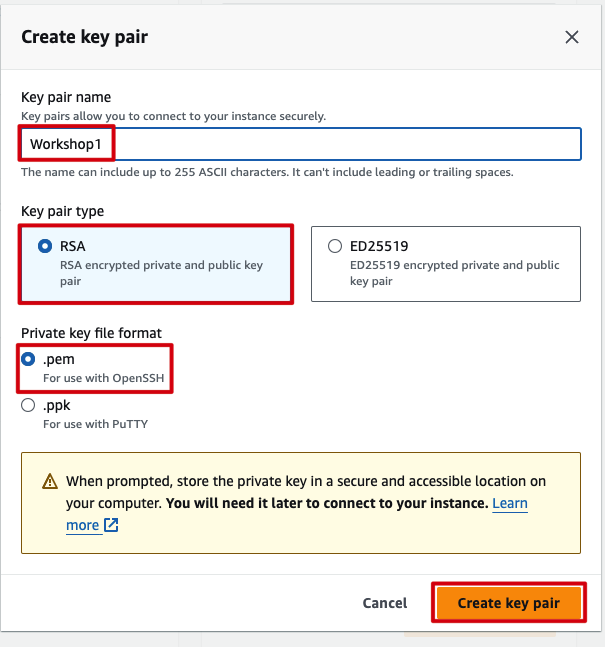

  1. In the Cretae key pair interface

    • Key pair name, as Workshop1 (Optional name, you can set any).
    • Key pair type, as RSA
    • Private key file format, choose .pem

EC2

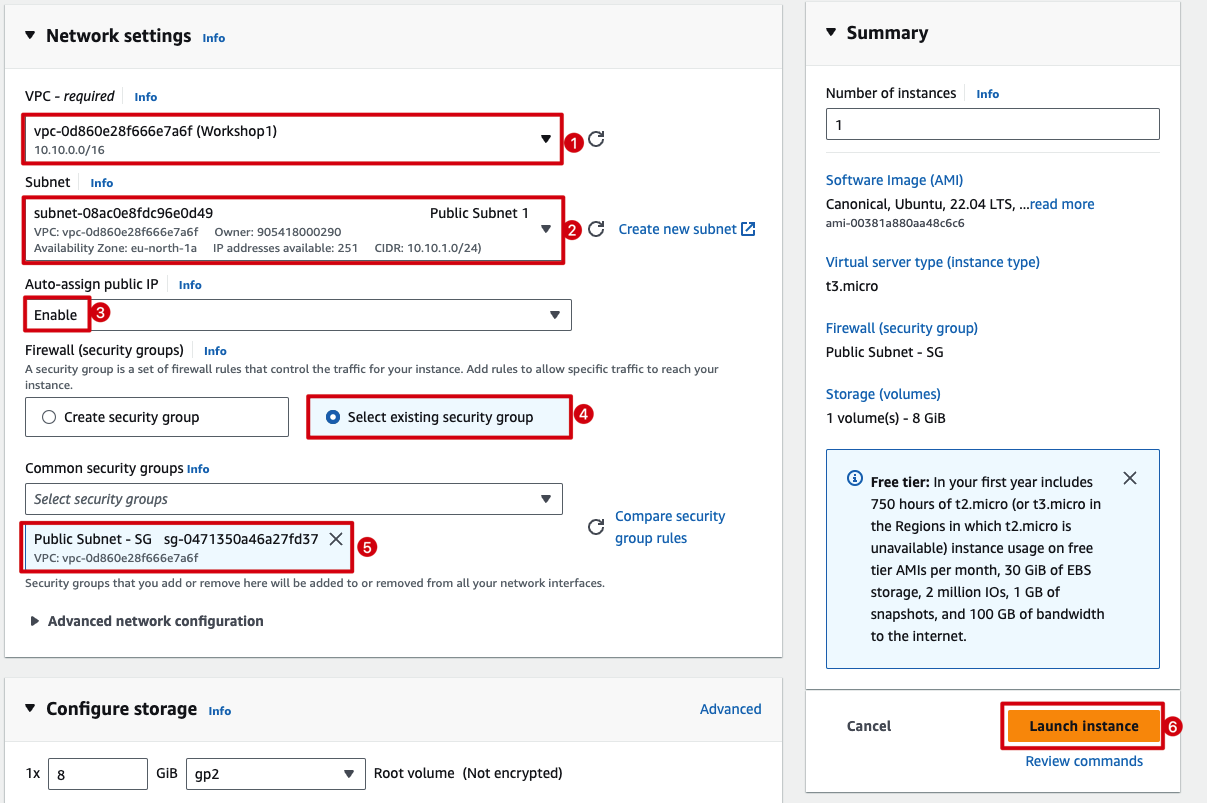

  1. Implement Network

    • VPC, Select Workshop1
    • Subnet, Select Public Subnet 1
    • Auto-assign public IP, Select Enable
    • Firewall (Security Group), Select Select existing security group
    • Select Public subnet - SG
    • Select Launch instance

EC2

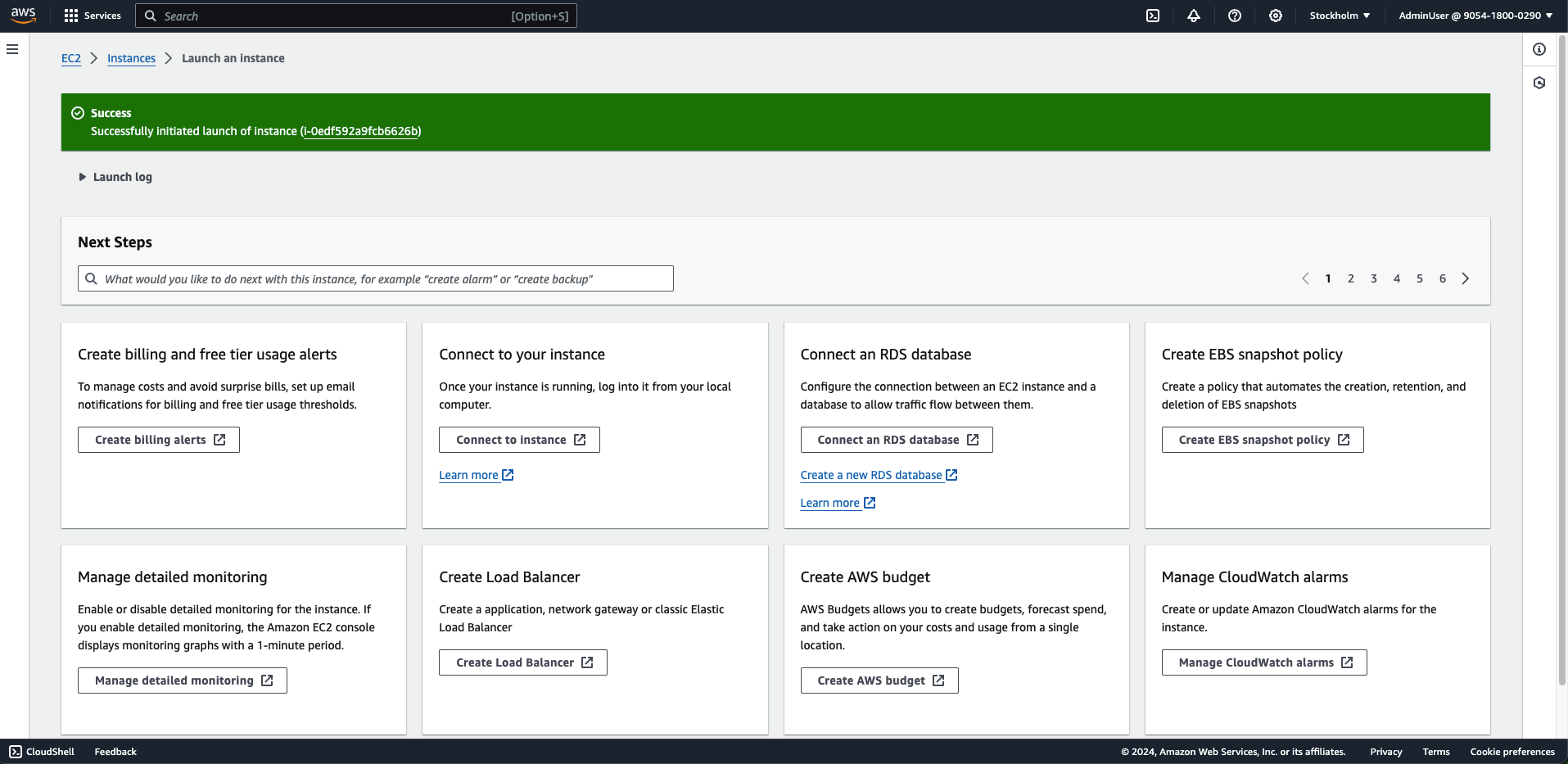

  1. Finish creating instance

EC2

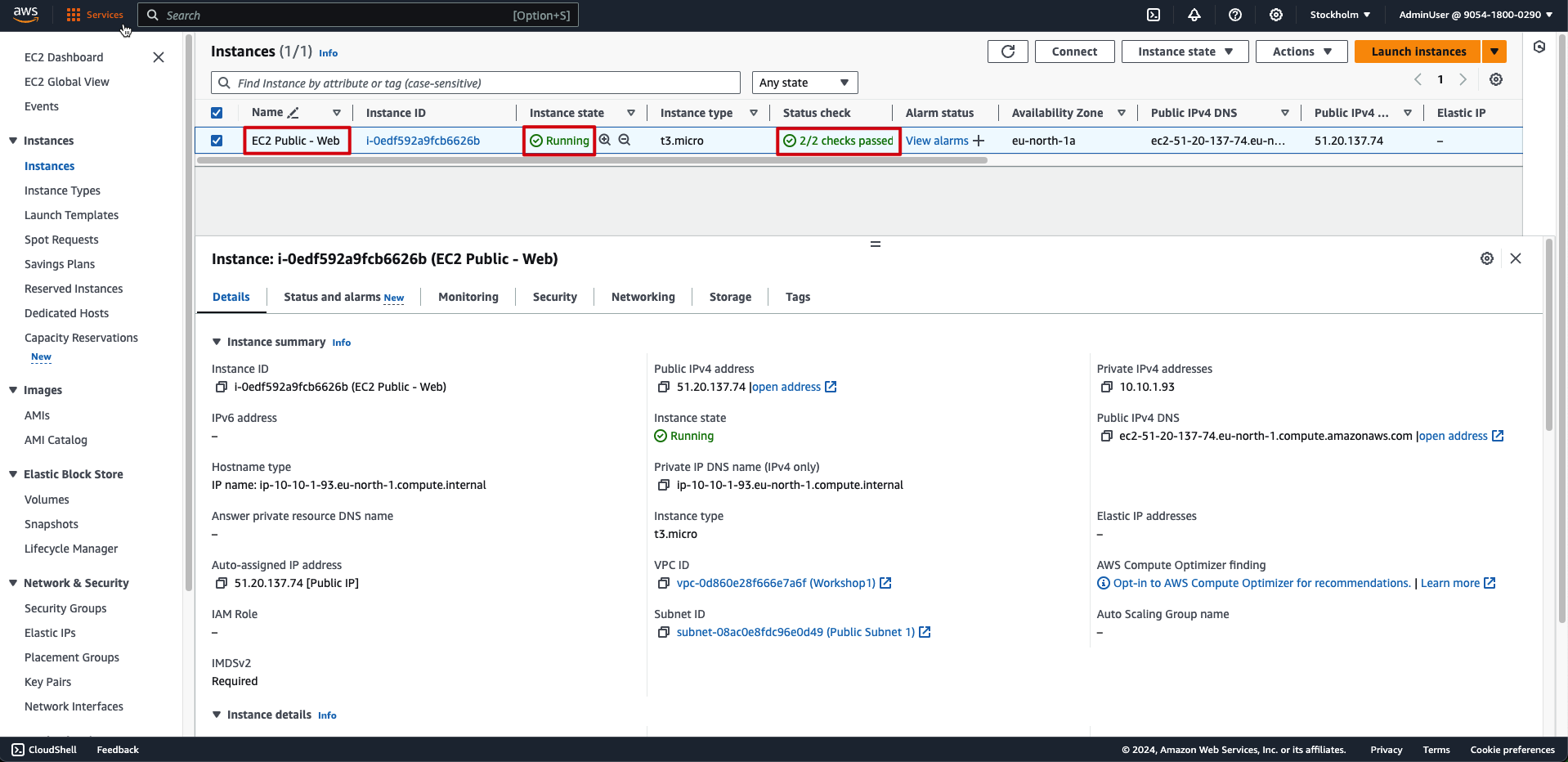

  1. Wait about 5 minutes Status check will be turn 2/2 checks passed

EC2

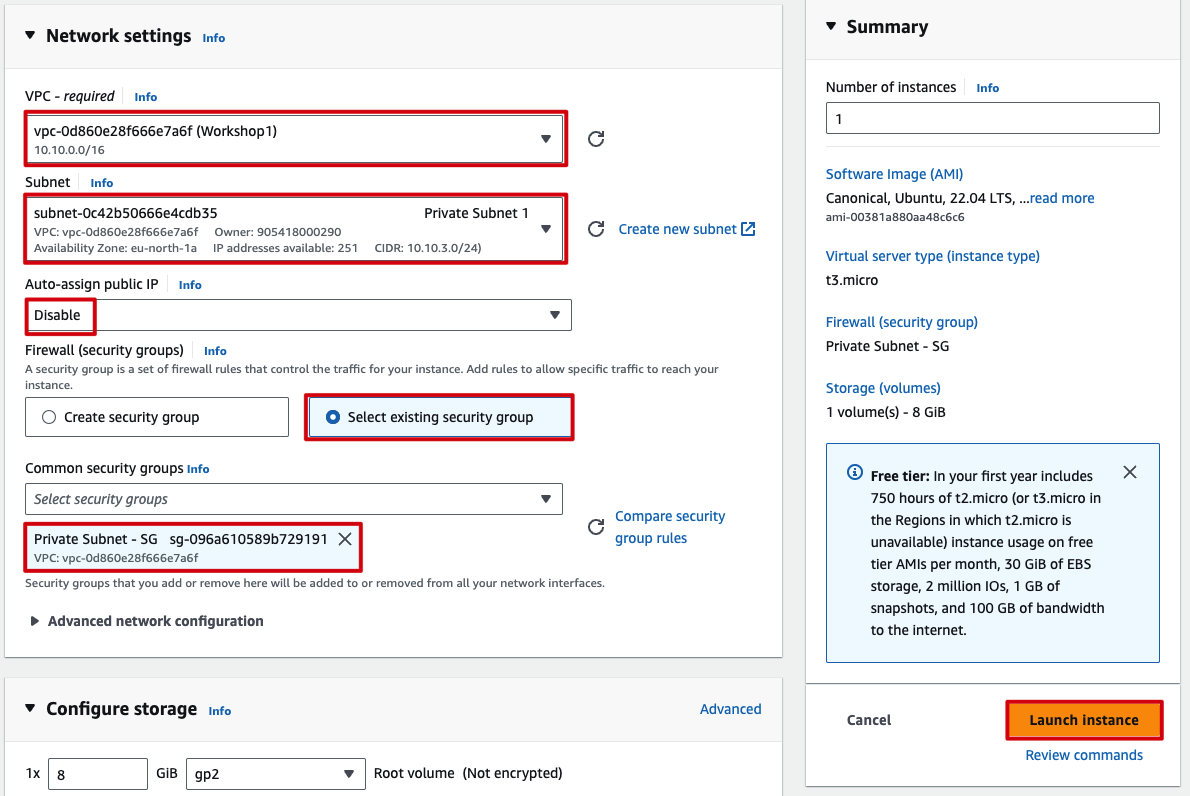

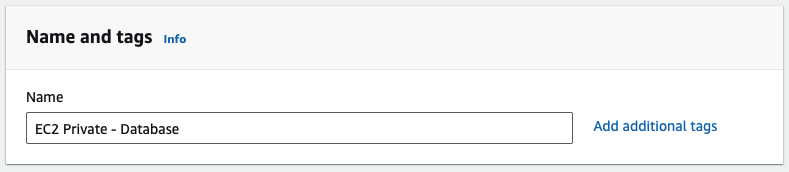

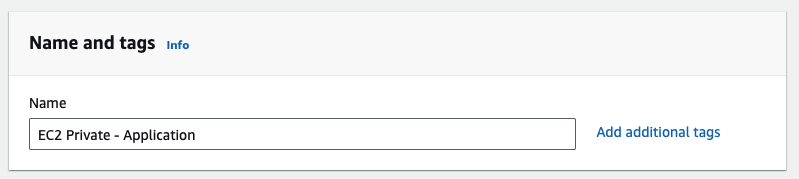

Same the way, create EC2 in Private subnet

EC2 EC2 EC2 EC2 EC2 EC2 EC2 EC2 EC2 EC2

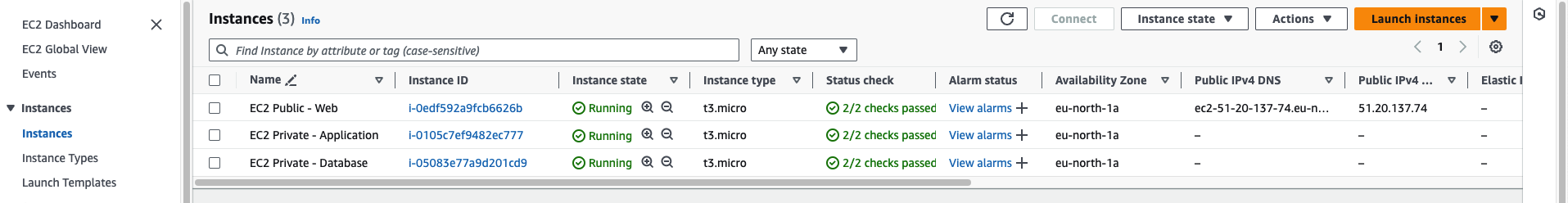

  1. Finish creating 3 instances
