Create NAT Gateway

Create an Elastic IP

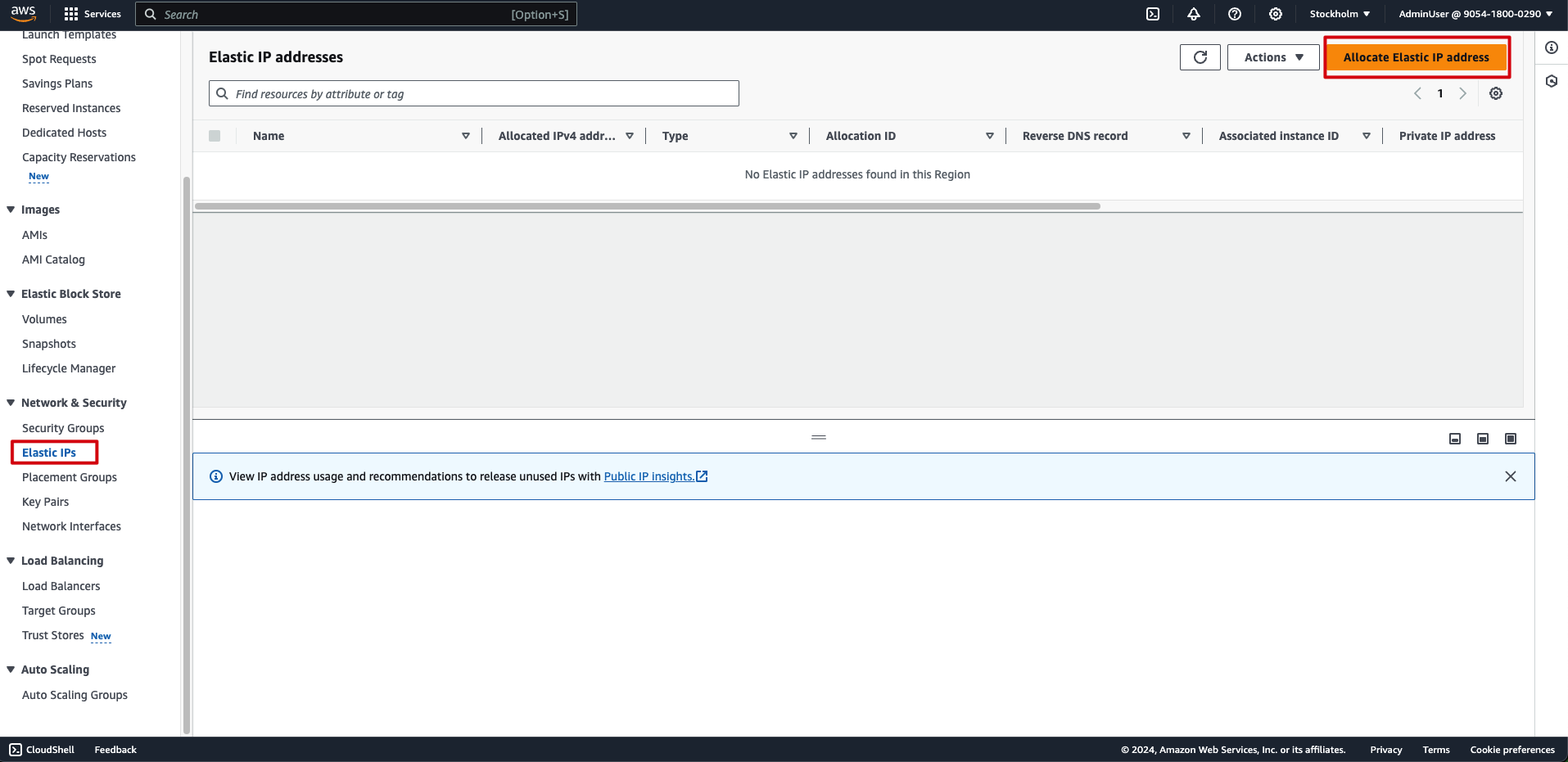

1. Access to EC2

   • Select Elastic IPs
   • Select Allocate Elastic IP address

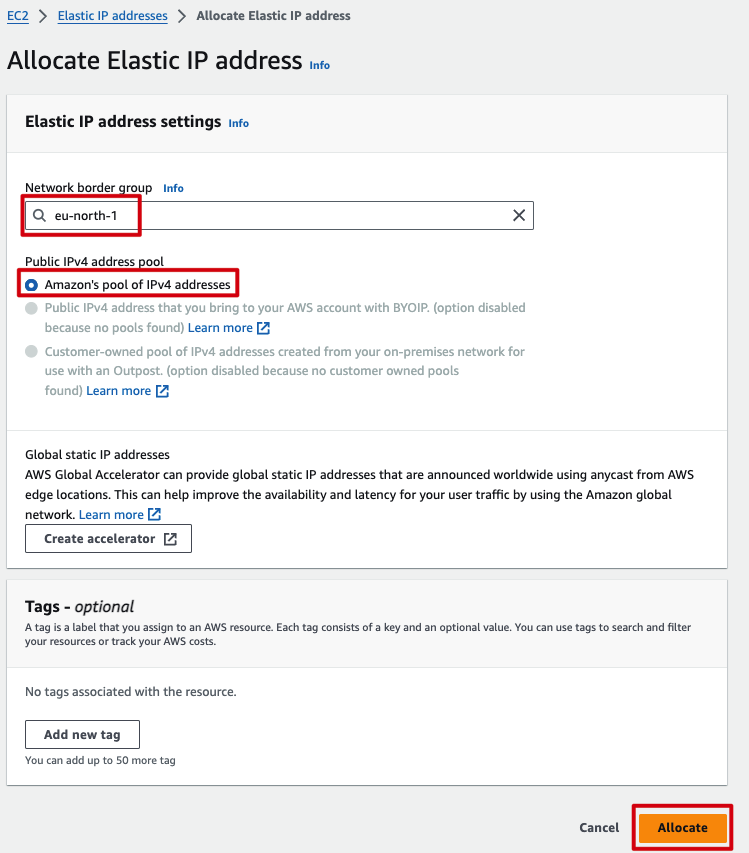

2. In the Allocate Elastic IP address interface

   • Public IPv4 address pool, choose Amazon’s pool of IPv4 addresses
   • Select Allocate

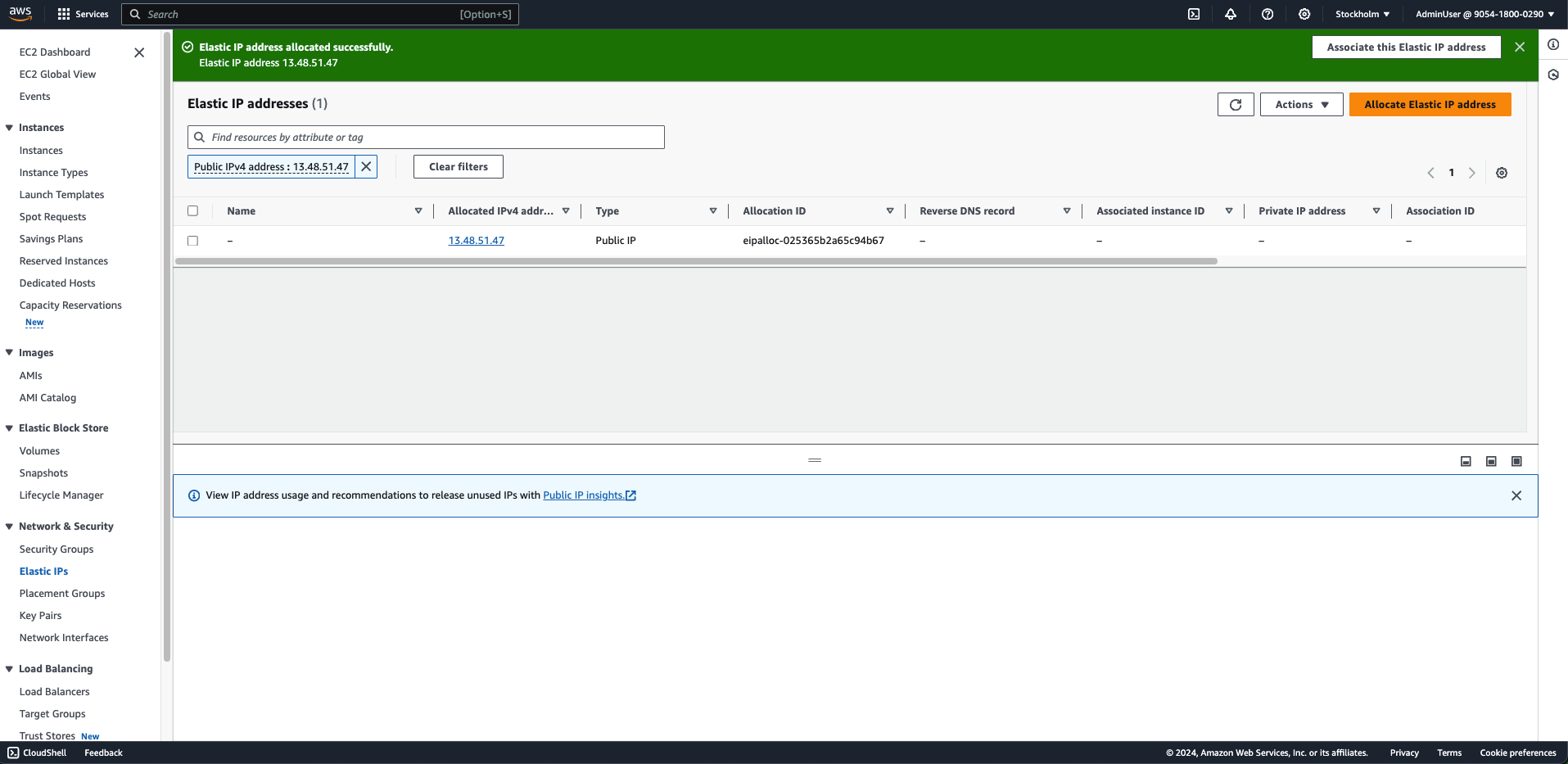

3. We have just successfully created a Public IP Address

Create NAT Gateway

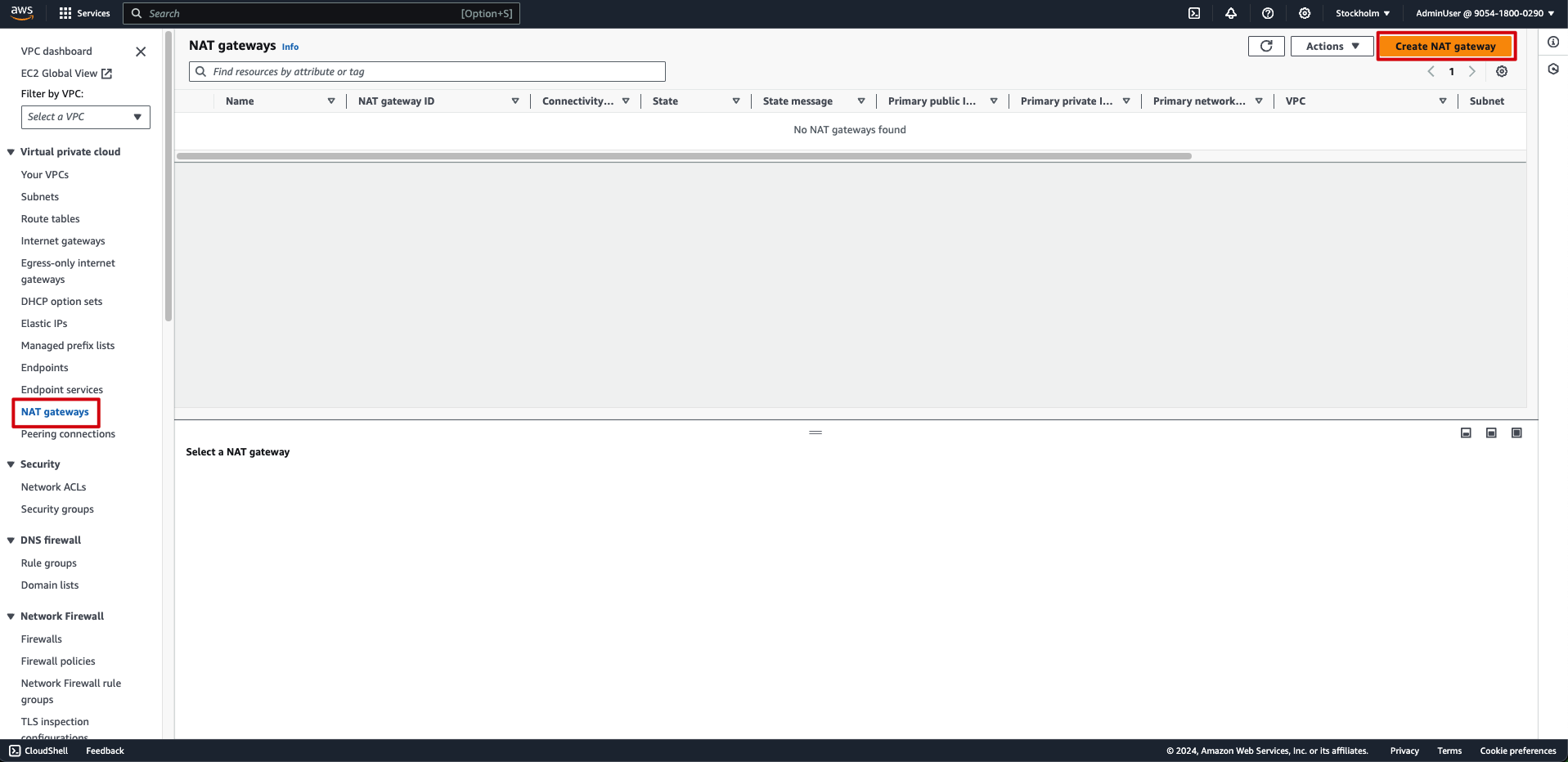

4. Access to VPC

   • Choose NAT Gateways
   • Create NAT gateway

5. In the NAT gateway interface

   • Name, as NAT gateway
   • Subnet, select Public subnet 2
   • Connectivity type, select Public
   • Elastic IP allocation ID, select created Elastic IP.

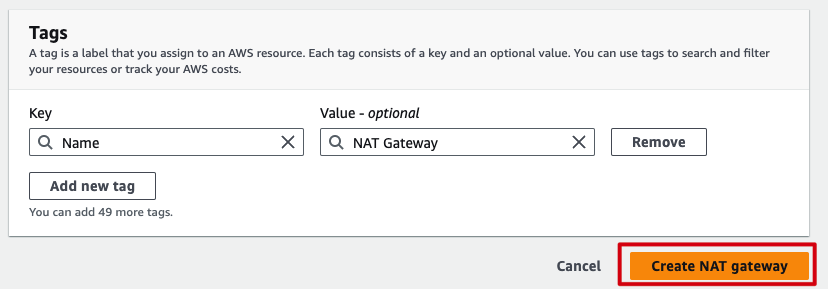

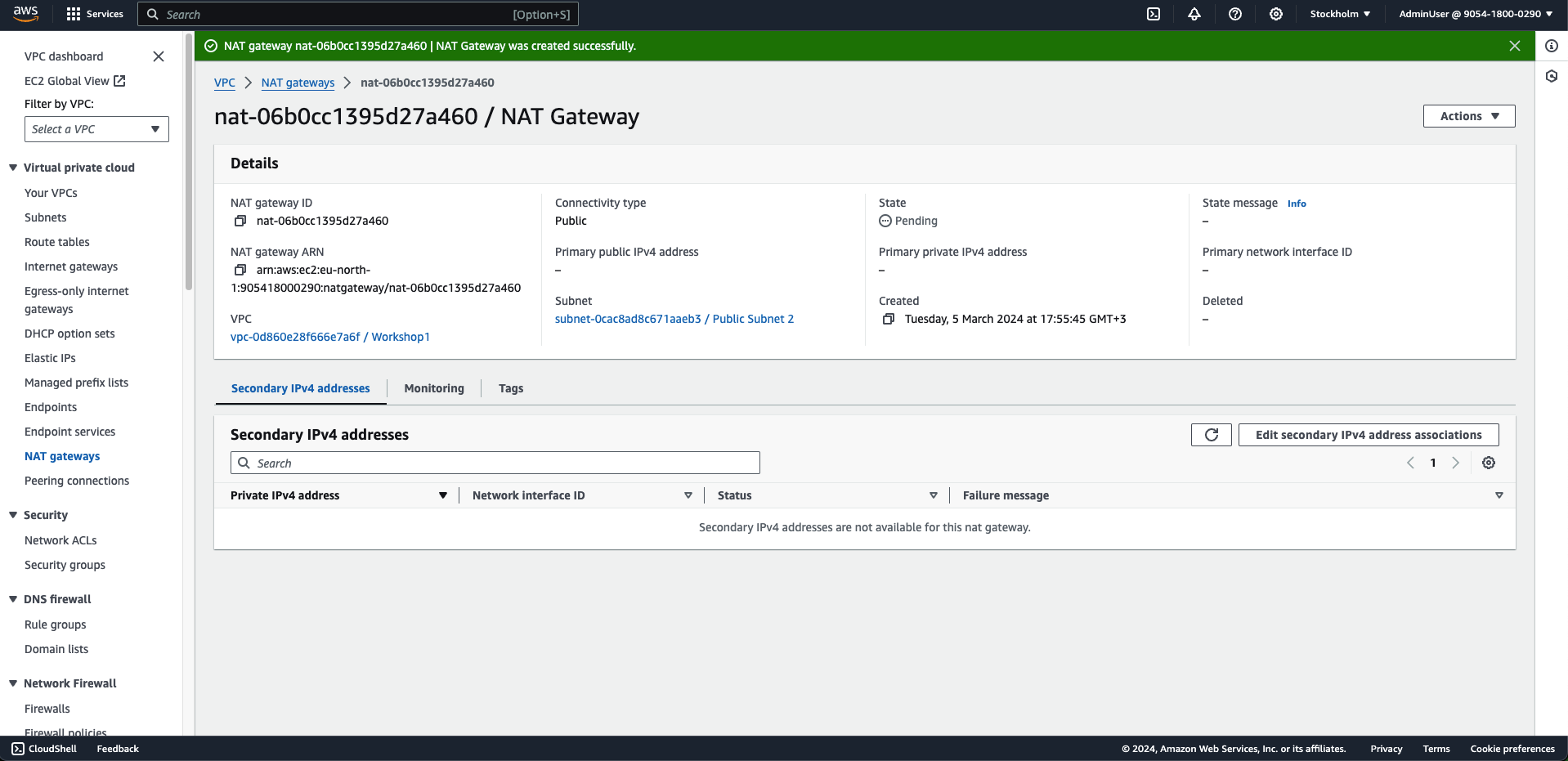

6. Select Create NAT gateway

Create Route table - Private and associate private subnet

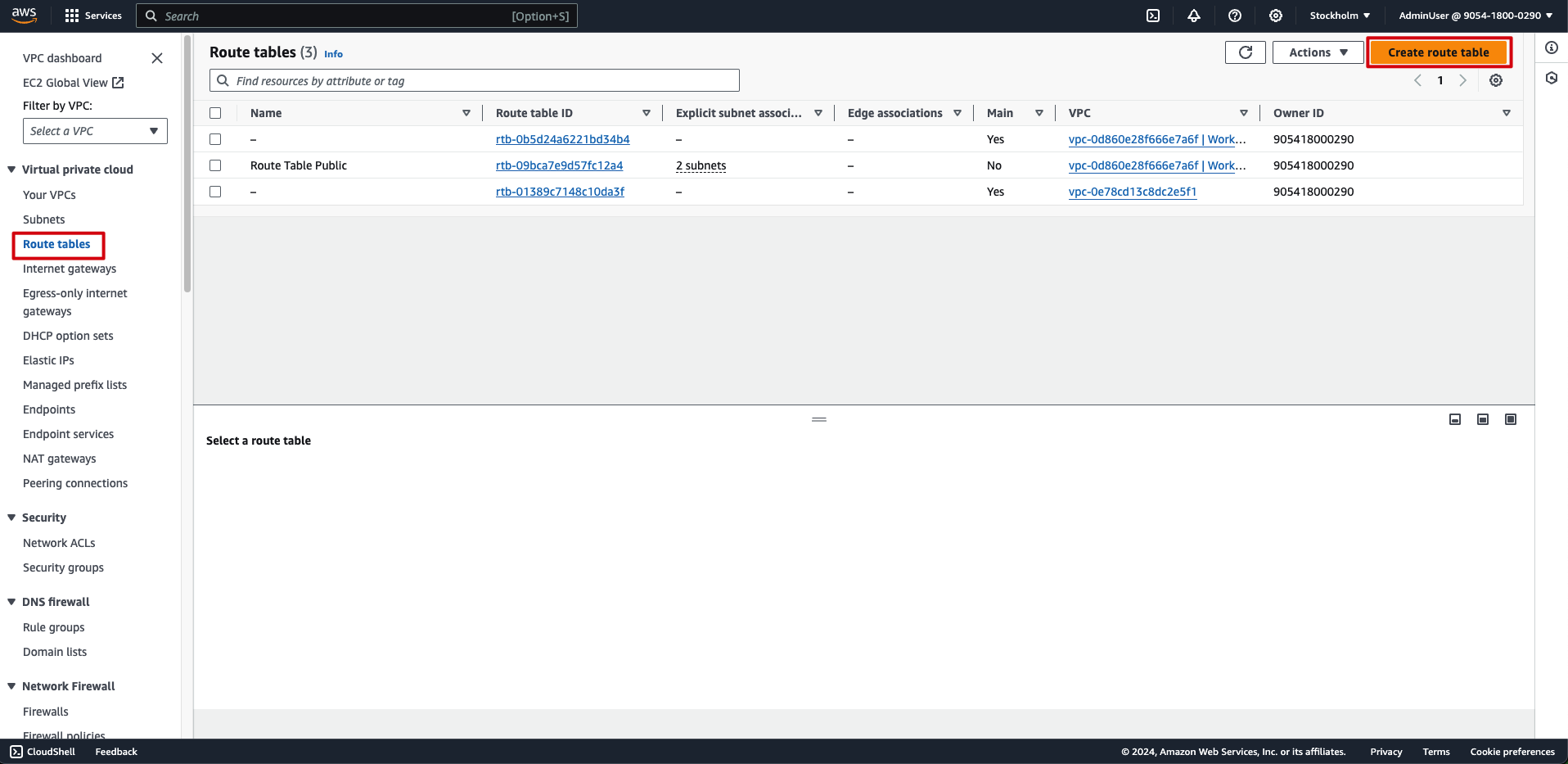

7. In the VPC interface

   • Select Route Tables
   • Select Create route table

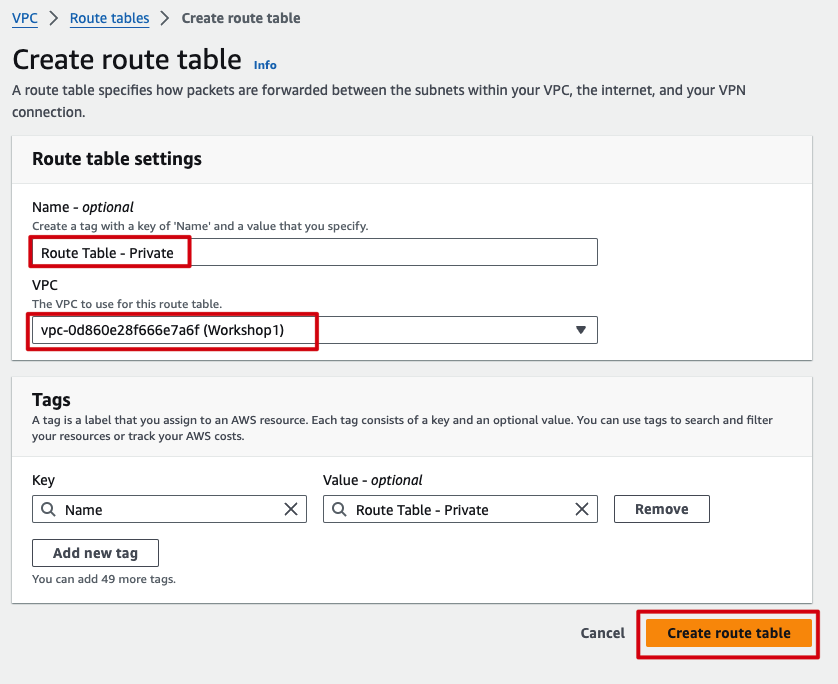

8. In the Route table interface

   • Name, as Route table - Private
   • VPC, as Workshop1 vpc
   • Select Cretae route table

9. Finish creating Route table - Private

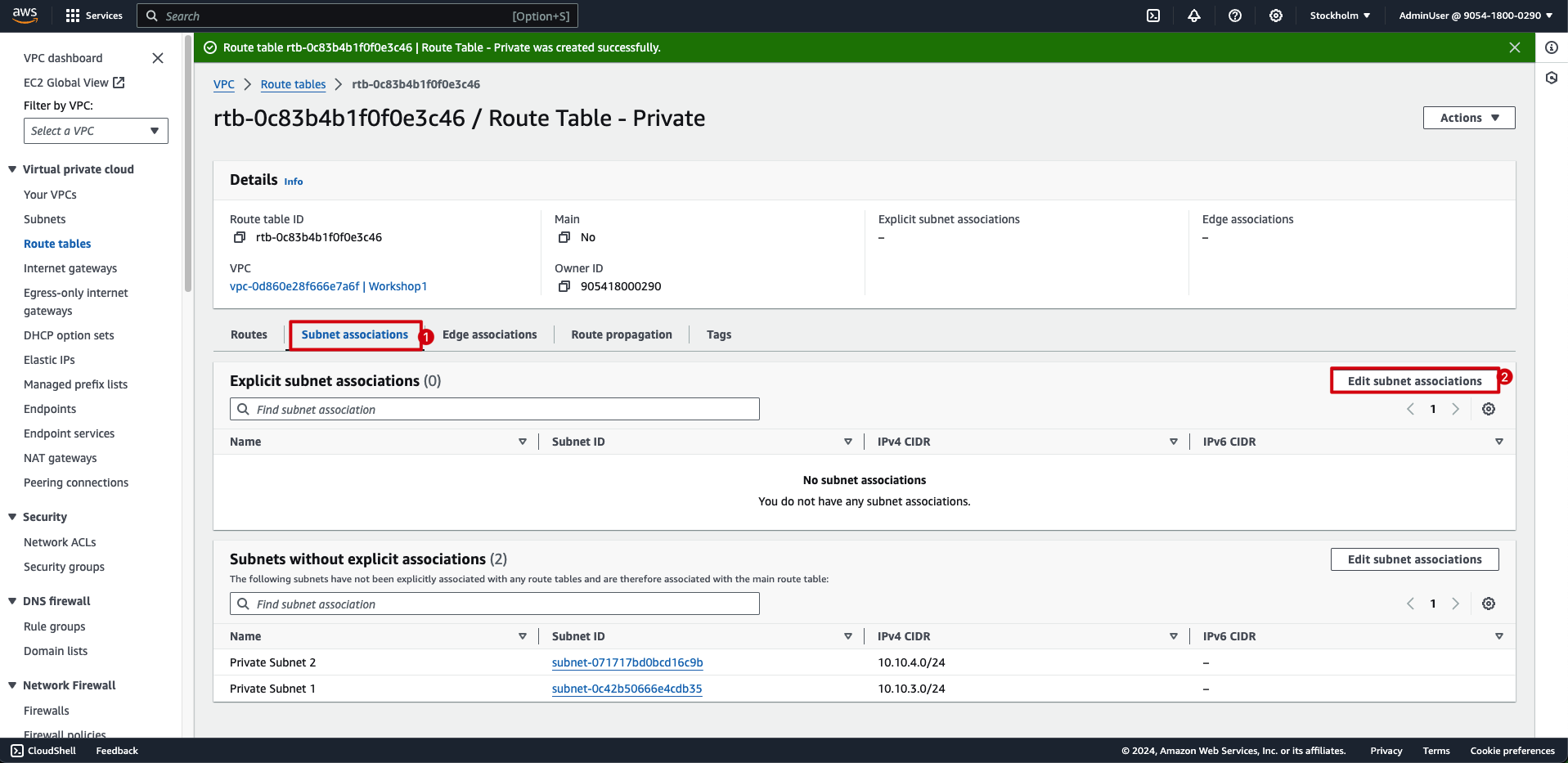

10. In the Route table - Private interface:

    • Select Subnet Associations
    • Select Edit subnet associations

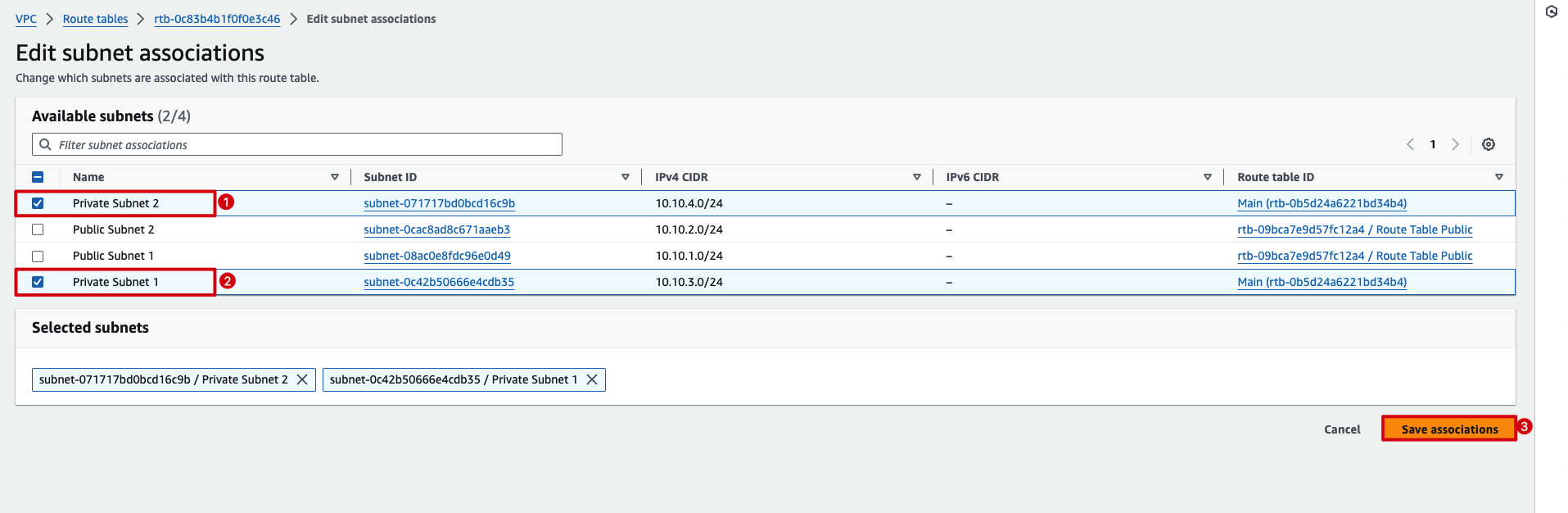

11. In the Edit subnet associations interface

    • Select 2 private subnet
    • Select Save associations

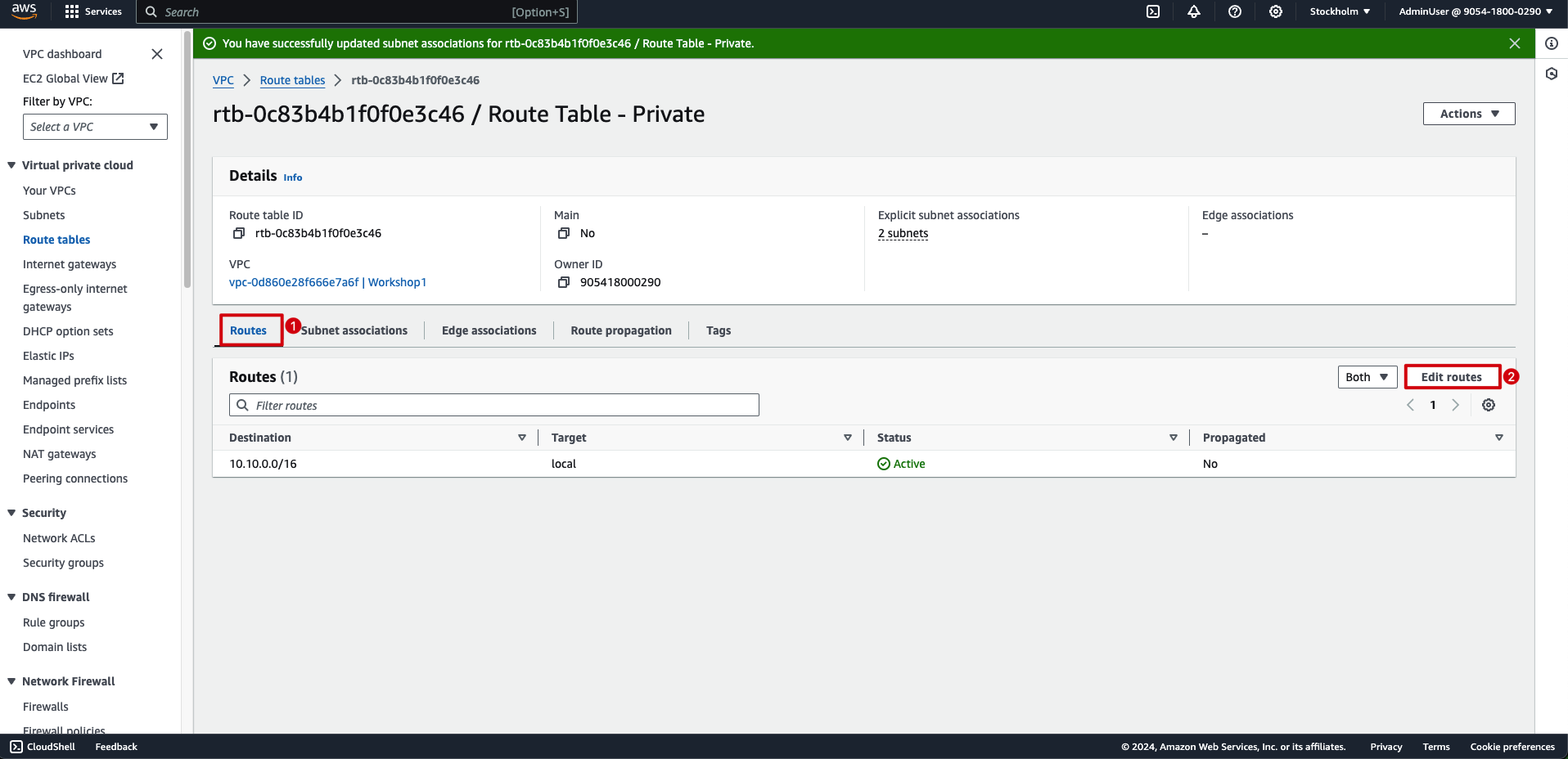

12. In the Route table - Private interface

    • Select Routes
    • Select Edit routes

13. In the Edit routes interface

    • Select Add route
    • Select Destination: 0.0.0.0/0
    • Target: NAT Gateway
    • Select Save changes

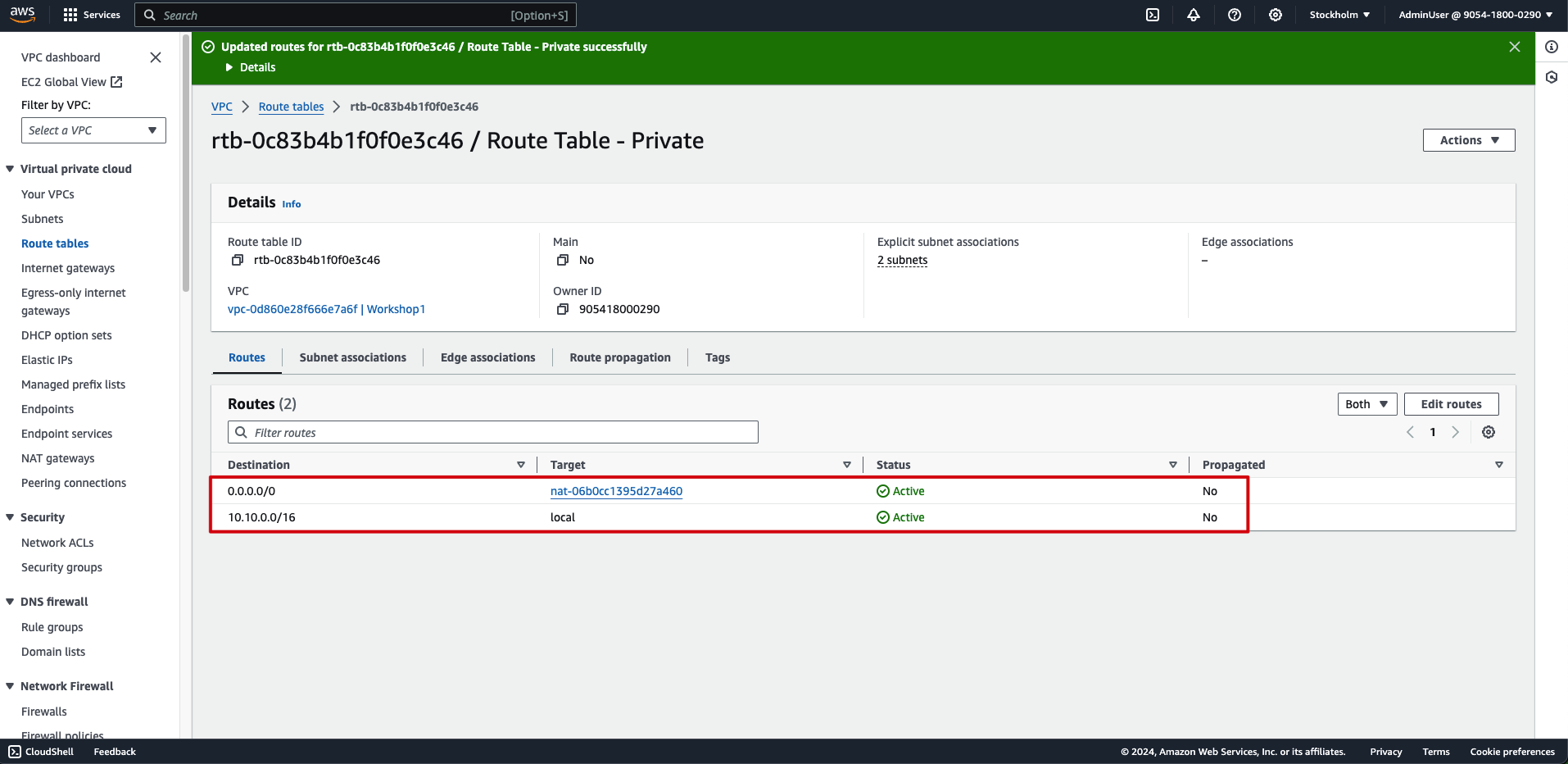

14. Checking Routes

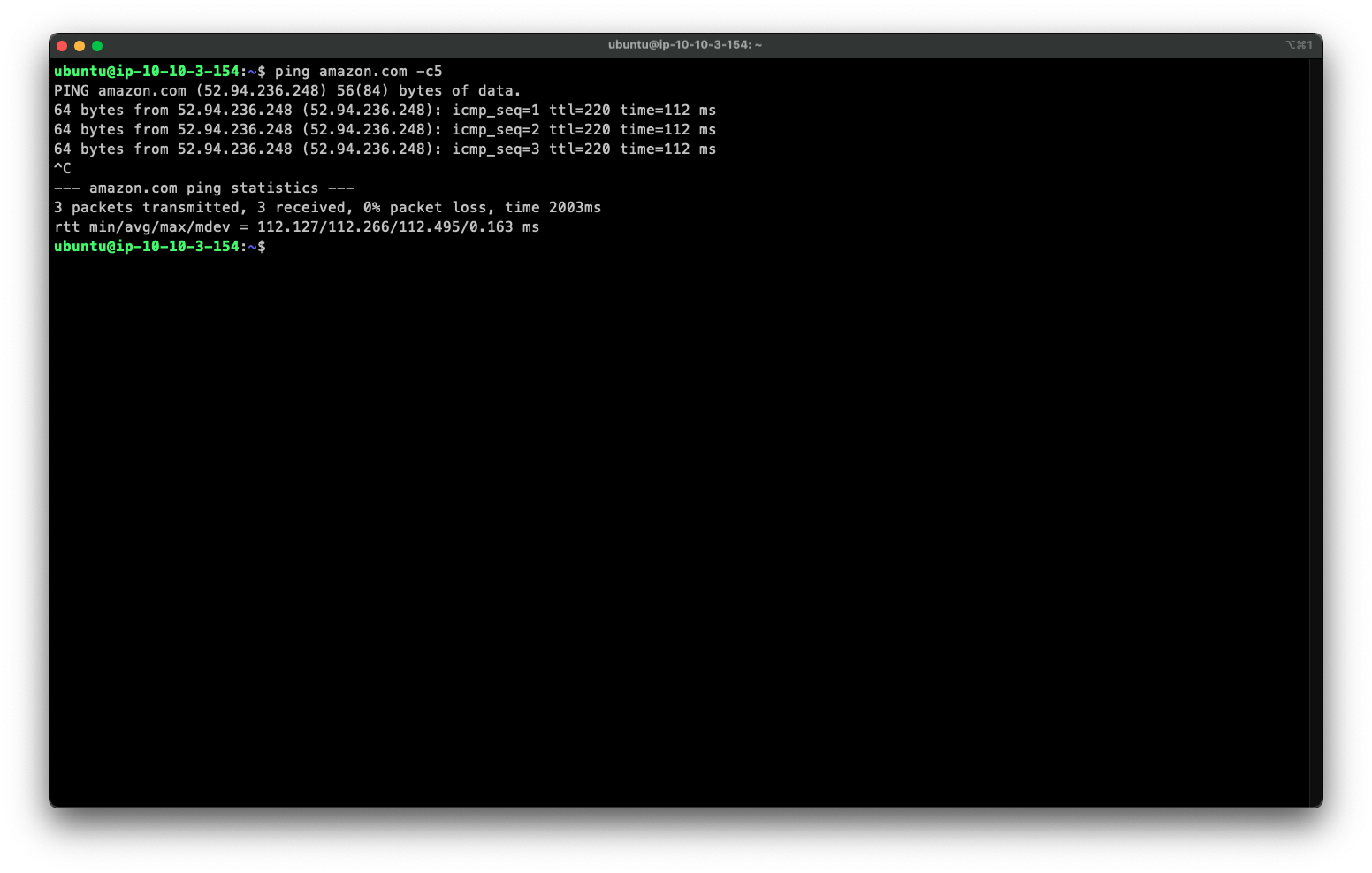

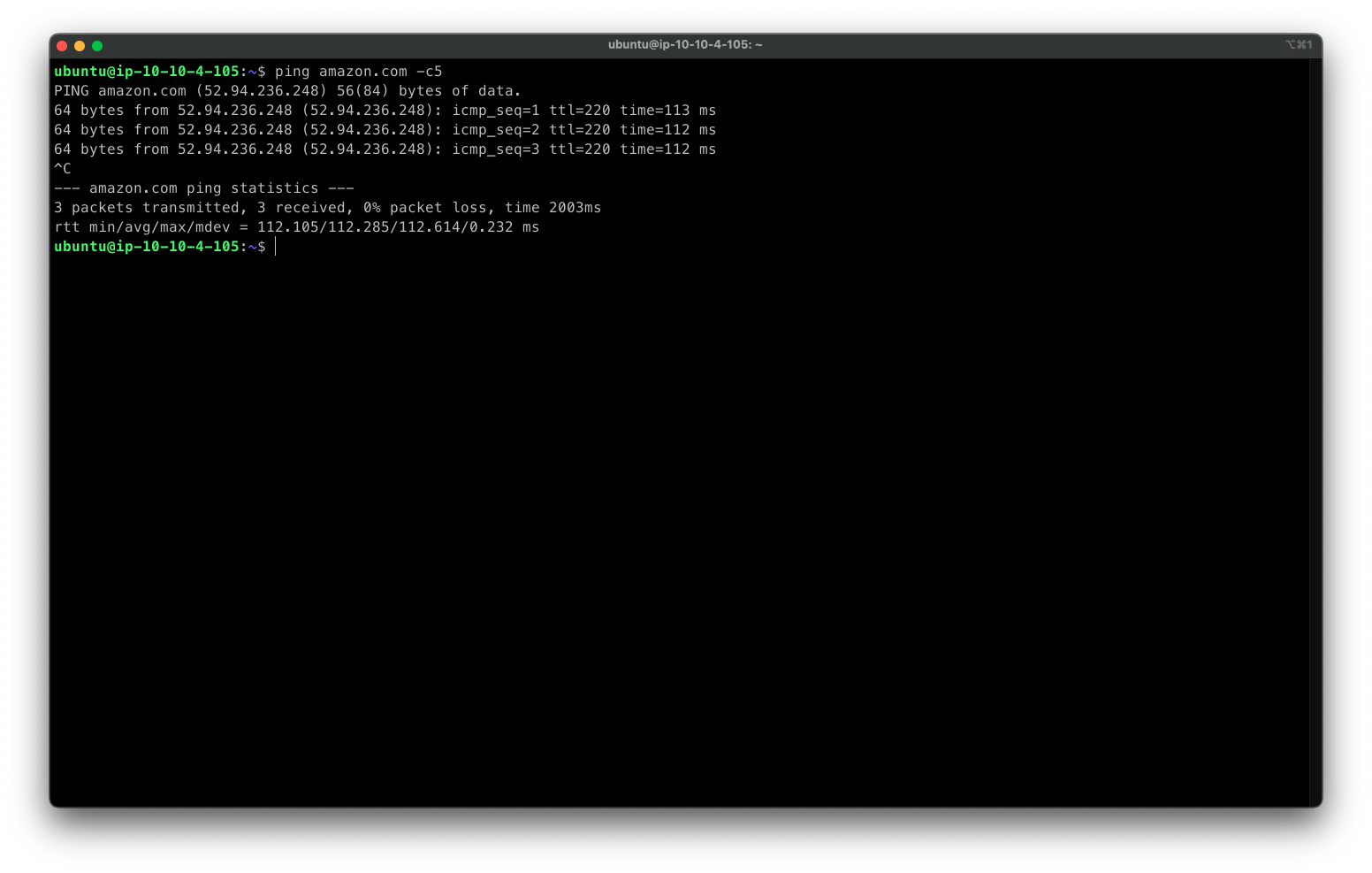

15. Check whether 2 Private EC2 can ping to the internet. The results here are ok.
